UNILIFT CC9-A1 GA
UNILIFT CC9-A1 GA
Descripción de Producto

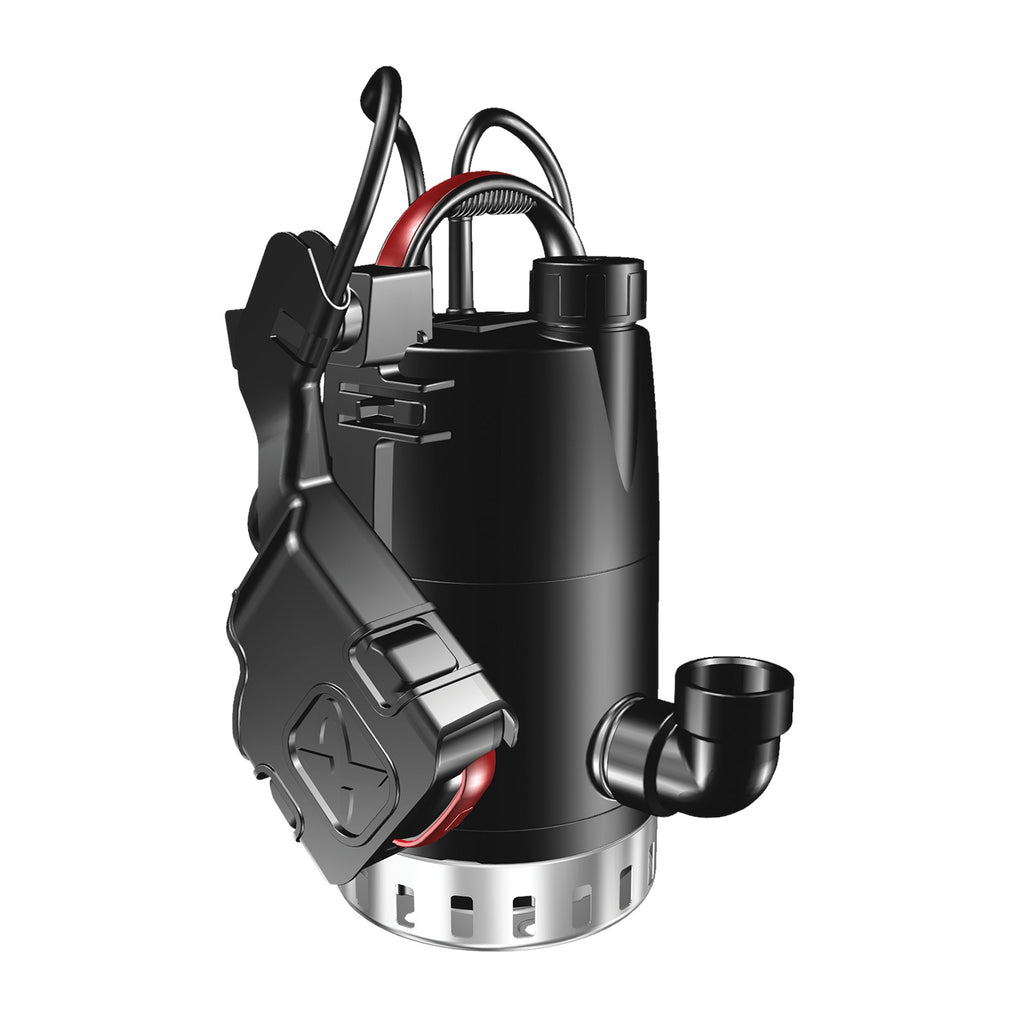

UNILIFT CC9-A1 GA Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from - washing machines, baths, sinks, etc. from low-lying parts of buildings up to sewer level - cellars or buildings prone to flooding - draining wells - wells for surface water with inlets from roof gutters, pits, tunnels, etc. - swimming pools, ponds or fountains. The pumps are suitable for both stationary and portable use. They are for automatic operation equipped with a guided float switch on a lever arm for narrow tanks and pump sumps. The pumps allow free passage of particles up to ø10 mm. The motor incorporates automatic overload protection cutting out the motor in case of overload. When cooled to normal temperature, the motor restarts automatically.
Consulte las características y especificaciones de la Grundfos UNILIFT CC9-A1 GA antes de realizar su pedido.
Datos técnicos
| Familia | UNILIFT |
|---|---|
| Subfamilia | UNILIFT CC |
| Tipo de producto | Bomba de drenaje |
| País de fabricación | HU |
| Caudal nominal (m³/h) | 1.85 |
| Caudal máximo (m³/h) | 14.004 |
| Altura nominal (m) | 6.56 |
| Altura máxima (m) | 9.0 |
| Temperatura mínima del líquido (°C) | 0.0 |
| Temperatura máxima del líquido (°C) | 40.0 |
| Tamaño máximo de partículas (mm) | 10.0 |
| Tensión (V) | 1 x 220-240 V |
| Número de fases | 1 |
| Frecuencia (Hz) | 50 Hz |
| Intensidad (A) | 3.5 |
| Potencia (kW) | 0.465 |
| Potencia absorbida (kW) | 0.78 |
| Velocidad nominal (rpm) | 2850 |
| Clase de aislamiento | B |
| Protección IP | IP68 |
| Material de carcasa | Polipropileno |
| Material del impulsor | Composite |
| Material del eje | Stainless steel |
| Conexión de entrada | R 1 1/4 inch |
| Conexión de salida | R 1 1/4 inch |
| Peso neto (kg) | 6.94 |
| Peso bruto (kg) | 7.7 |
| Volumen de transporte (m³) | 0.017 |
